Self-Bow....self made.....

 Post Reply Post Reply
Author
Message
Irish Bird Dog View Drop Down
.416 Rigby
.416 Rigby
Avatar

Joined: 01 March 2009
Location: Midwest
Status: Offline
Points: 3856
Post Options Post Options   Thanks (0) Thanks(0)   Quote Irish Bird Dog Quote  Post ReplyReply Direct Link To This Post Topic: Self-Bow....self made.....
    Posted: 21 January 2010 at 12:47

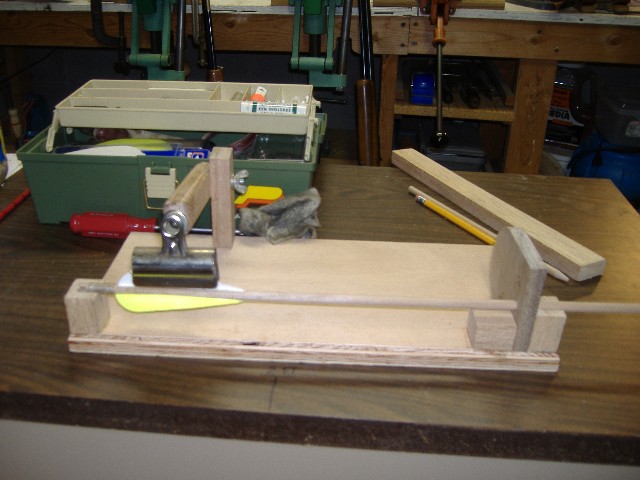

Top pic is my homemade fletching jig.  This is my first try at a selfbow.......about 66" lg made from elm......made the arrows from popple dowls from Mendards......yuh gotta start someplace.....found the feathers at the hardware store...cut the nocs with file and hacksaw and wrapped artificial sinew to keep shaft from splitting when shot......40# range +/- w/24" arrows......gunna try agin this winter to make another.











Irish Bird Dog

NRA Life/Endowment

2nd Amendment Supporter
Back to Top
Rockydog View Drop Down
Administrator
Administrator
Avatar

Joined: 13 June 2003
Location: United States
Status: Offline
Points: 3191
Post Options Post Options   Thanks (0) Thanks(0)   Quote Rockydog Quote  Post ReplyReply Direct Link To This Post Posted: 21 January 2010 at 14:41
IBD, Nice looking bow. IIRC one of mr mom's boys makes bows too. RD
When the people fear their government, there is tyranny; when the government fears the people, there is liberty.
Thomas Jefferson
Back to Top
mr mom View Drop Down
.30/06 SpringField
.30/06 SpringField
Avatar

Joined: 10 June 2003
Location: United States
Status: Offline
Points: 334
Post Options Post Options   Thanks (0) Thanks(0)   Quote mr mom Quote  Post ReplyReply Direct Link To This Post Posted: 21 January 2010 at 15:26

  nathan started out with the dowl rods too. he found a site that showed how to make a spine tester with a 3/4 in. box wrench. that is you main concern...

  check out 3 river archery,s website . theye have everything you need or want for stickbows.

  if you want a real treat check out compton trad. archery..  they have a BIG  get togeather every year at our club. i think its june 18,19 and 20 this year.. about 7000 trad shooters and a fun time ....

  vendors everywhere . on sat. night they have a trading blanket sale .  bow makers from all over the u.s. come here.

  blackpowdernut  has made at least 1 that i know of . but now he is playing with wires and tubes..  its ham radio time ...



mr mom
Back to Top
Irish Bird Dog View Drop Down
.416 Rigby
.416 Rigby
Avatar

Joined: 01 March 2009
Location: Midwest
Status: Offline
Points: 3856
Post Options Post Options   Thanks (0) Thanks(0)   Quote Irish Bird Dog Quote  Post ReplyReply Direct Link To This Post Posted: 21 January 2010 at 16:19
Originally posted by mr mom mr mom wrote:

  nathan started out with the dowl rods too. he found a site that showed how to make a spine tester with a 3/4 in. box wrench. that is you main concern...

  check out 3 river archery,s website . theye have everything you need or want for stickbows.

  if you want a real treat check out compton trad. archery..  they have a BIG  get togeather every year at our club. i think its june 18,19 and 20 this year.. about 7000 trad shooters and a fun time ....

  vendors everywhere . on sat. night they have a trading blanket sale .  bow makers from all over the u.s. come here.

  blackpowdernut  has made at least 1 that i know of . but now he is playing with wires and tubes..  its ham radio time ...



got the 3rivers catalog and a few others.  I am strictly amatuer in this game, surely not ready for any US wide archery event.  Later in the spring I should be able to show my 2nd self bow.......as for the arrows I needed to start someplace.....these would not be hunting arrows but do suffice for competition at the Rendesvous I attend.....I don't even have metal points/tips, I just sharpen these in a pencil sharpener (grade school crank type) and harden a them bit by burnishing them some.

Irish Bird Dog

NRA Life/Endowment

2nd Amendment Supporter
Back to Top
Wing master View Drop Down
Administrator
Administrator
Avatar
AKA StraightShooter

Joined: 10 June 2003
Location: United States
Status: Offline
Points: 4873
Post Options Post Options   Thanks (0) Thanks(0)   Quote Wing master Quote  Post ReplyReply Direct Link To This Post Posted: 21 January 2010 at 17:46

Thats really cool. Are you thinking about hunting with it?

Wing master

I have always considered myself to be quite the bullshitter, But ocasionally it is nice to sit back and listen to a true professional......So, Carry on.
Back to Top
Guests View Drop Down
Guest
Guest
Post Options Post Options   Thanks (0) Thanks(0)   Quote Guests Quote  Post ReplyReply Direct Link To This Post Posted: 22 January 2010 at 03:26

Looks great.  I always found the dowels to heavy to shoot properly,  I made ceder shaft, bought the stuff from the old Herters.

I use to do that stuff, but never made a bow.  When I started archery in 1959, money was the motivator to DIY.  but it was fun.

Then I got a Ben Pearson wood/glass backed, and never went back.  Maybe some day!

Back to Top
Irish Bird Dog View Drop Down
.416 Rigby
.416 Rigby
Avatar

Joined: 01 March 2009
Location: Midwest
Status: Offline
Points: 3856
Post Options Post Options   Thanks (0) Thanks(0)   Quote Irish Bird Dog Quote  Post ReplyReply Direct Link To This Post Posted: 22 January 2010 at 03:55

Bear said "I always found the dowels to heavy to shoot properly,  I made ceder shaft, "

Since this was a beginners project, me the beginner, I went on the cheap for the learning time it offered.  These are only used for the rendezvous games at foam targets at close range.  They work well for that BUT I actually never gave it much thought of the wt of popple vs cedar, all the while knowing cedar has been the wood of choice for arrows for upteen years.  When I get the next bow finished this winter/spring I will try some cedar for arrows.  Cost was another factor too, I am inexpensive (cheap to you country boys) & the dowls only cost about 36cents each.

Irish Bird Dog

NRA Life/Endowment

2nd Amendment Supporter
Back to Top
Guests View Drop Down
Guest
Guest
Post Options Post Options   Thanks (0) Thanks(0)   Quote Guests Quote  Post ReplyReply Direct Link To This Post Posted: 22 January 2010 at 04:23

IBD, I hear you.  I'm a thrifty german type myself.



Cedar at an archer shop, clear, spined and graded is probaly over $1 a piece.  I think I bought those Herters for about $3 per 24 and shipping then was probably about 44 cents.LOL

I also tried making some out of local scraps, they warped the first time I used them.

The local indians seemed to like Osage Orange.



Back to Top
Irish Bird Dog View Drop Down
.416 Rigby
.416 Rigby
Avatar

Joined: 01 March 2009
Location: Midwest
Status: Offline
Points: 3856
Post Options Post Options   Thanks (0) Thanks(0)   Quote Irish Bird Dog Quote  Post ReplyReply Direct Link To This Post Posted: 22 January 2010 at 09:01

bear said....."The local indians seemed to like Osage Orange."

for sure for they used that wood fer bows, first I heard for arrows

I most likely won't hunt with my first selfbow, I ani't much of a bow hunter since I had the damn rotator cuff type injury.....and I ain't even a ball player!

Irish Bird Dog

NRA Life/Endowment

2nd Amendment Supporter
Back to Top
Guests View Drop Down
Guest
Guest
Post Options Post Options   Thanks (0) Thanks(0)   Quote Guests Quote  Post ReplyReply Direct Link To This Post Posted: 22 January 2010 at 11:17
I know the problem, spent 6 month in rehab, for the R. cuff.  Helped, but I never got it back 100%.  But the rehab girls were great, I always got a back rub when I finished my exercise!
Back to Top
Irish Bird Dog View Drop Down
.416 Rigby
.416 Rigby
Avatar

Joined: 01 March 2009
Location: Midwest
Status: Offline
Points: 3856
Post Options Post Options   Thanks (0) Thanks(0)   Quote Irish Bird Dog Quote  Post ReplyReply Direct Link To This Post Posted: 22 January 2010 at 14:46
you ain't a BEAR your a Wolf!
Irish Bird Dog

NRA Life/Endowment

2nd Amendment Supporter
Back to Top
Guests View Drop Down
Guest
Guest
Post Options Post Options   Thanks (0) Thanks(0)   Quote Guests Quote  Post ReplyReply Direct Link To This Post Posted: 23 January 2010 at 01:55

A toothless wolf now!LOL

If I catch one, I can't seem to remember what to do with them?  Well, maybe it is like riding a bike, you never forget.

Back to Top
Rockydog View Drop Down
Administrator
Administrator
Avatar

Joined: 13 June 2003
Location: United States
Status: Offline
Points: 3191
Post Options Post Options   Thanks (0) Thanks(0)   Quote Rockydog Quote  Post ReplyReply Direct Link To This Post Posted: 23 January 2010 at 02:49
Originally posted by BEAR BEAR wrote:

A toothless wolf now!LOL

If I catch one, I can't seem to remember what to do with them?  Well, maybe it is like riding a bike, you never forget.

If your feet can still reach the pedals.....

When the people fear their government, there is tyranny; when the government fears the people, there is liberty.
Thomas Jefferson
Back to Top
Guests View Drop Down
Guest
Guest
Post Options Post Options   Thanks (0) Thanks(0)   Quote Guests Quote  Post ReplyReply Direct Link To This Post Posted: 23 January 2010 at 03:18
pedals seem to get farther away each dayLOL
Back to Top
Muleskinner View Drop Down
.416 Rigby
.416 Rigby
Avatar
AKA The Crotchety olí Geezer

Joined: 13 June 2003
Location: United States
Status: Offline
Points: 5249
Post Options Post Options   Thanks (0) Thanks(0)   Quote Muleskinner Quote  Post ReplyReply Direct Link To This Post Posted: 30 January 2010 at 00:51
3 Rivers Archery has a great site.  Could end up being another Cabelas-like money pit.  Way too much gotta have neat stuff.
Mule
Back to Top
Irish Bird Dog View Drop Down
.416 Rigby
.416 Rigby
Avatar

Joined: 01 March 2009
Location: Midwest
Status: Offline
Points: 3856
Post Options Post Options   Thanks (0) Thanks(0)   Quote Irish Bird Dog Quote  Post ReplyReply Direct Link To This Post Posted: 12 February 2010 at 14:46

Well, here we go again for bows #2 & #3 coming your way soon...the wood this time is Ash & I am aiming for a bit shorter bow this time @ 60" knock-knock with a straight taper design ie taper starts at 2" from the handle (both ends) and tapers to a 1/2" wide tip.  This puts more of the "power" down closer to the handle and less working at the tips.  When done I am shooting for a draw length of 24" & draw wt 35-40 range.  A lot of that depends on how well the final tillering goes.......but that's much later.  For now I began with a Ash stave that was about 75"lg and cut two bows out of the one stave.  We draw a pattern on the "face" side after debarking, then rough cut it on the bandsaw to save time (and my labor).  Now in this pic I am getting the width down and will rough form the handle area too.

Stay tuned for part 2 next week.  I know you kin hardly wait...

"The Beginning"

Irish Bird Dog

NRA Life/Endowment

2nd Amendment Supporter
